Dental drill manufacturer
Professional
Dental Burs
&instruments
Diamond burs, carbide burs, polishing heads, endodontic filescomplete rotary instrument solutions direct from our Guangzhoufactory to dental distributors in 50+ countries.
- CE Certified
- S0 13485
- OEM Available
- Fast Global Shipping
CE
IS0 Certified
20+
Years Experience
50+
Countries Served
500+
SKU Models
FULL PRODUCT PORTFOLIO
Complete Rotary Instrument Solutions
From crown preparation to root canal therapy — one manufacturer, every instrument your clinic or distribution catalog needs.

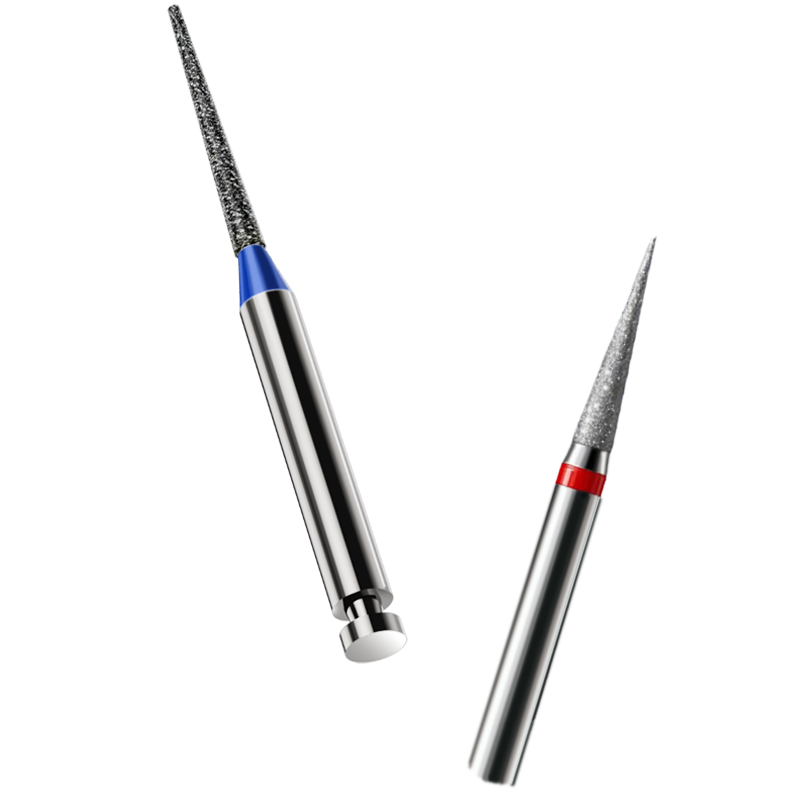

Diamond Dental Burs
Precision diamond-coated rotary instruments for crown prep, cavity prep, chamfer margin and finishing. 5 grit grades, 50+ shapes.
Extra Coarse
Standard
Fine
Extra Fine
450,000 RPM
View Catalog
→
Carbide Burs & Grinding Heads
FG, HP and RA shanks. High-speed tungsten carbide burs for efficient caries removal, crown preparation and margin refinement.
FG High Speed
HP Straight
RA Contra-Angle
450,000 RPM
View Catalog
→
RA Contra-Angle Diamond Burs
Low-speed right-angle diamond burs for controlled polishing and finishing. Designed for precision work in posterior restorations.
Multiple Shapes
Fine Grit
Polishing
160,000 RPM
View Catalog
→
Dental Polishing & Grinding Heads
Silicon and stone polishing kits for composite resin, alloy, porcelain, zirconia and full ceramic. Color-coded, procedure-specific sets.
Zirconia Kit
Ceramic Kit
Composite Kit
Alloy Kit
View Catalog
→
Endodontic Files & Broaches
ProTaper rotary NiTi files and barbed broaches for safe, efficient root canal shaping and pulp tissue removal.
ProTaper
Barbed Broaches
NiTi Rotary
Multiple Tapers
View Catalog
→
Specialty Bur Kits & Sets
Pre-assembled procedure kits designed for specific clinical workflows. Crown & Bridge, Veneer Prep, Inlay/Onlay, Pediatric, Extraction and more.
Crown & Bridge
Veneer Prep
Inlay/Onlay
Pediatric
View Catalog
→
Detailed Specifications
Product Catalog Reference
Technical specifications from our product catalog — exact models, grits, and applications for distributors and procurement teams.
Color-Coded Grit Classification System
- Extra Coarse (XC)
150–180 μm
Rapid bulk reduction, implant site preparation
- Coarse (C)
125–150 μm
Fast crown prep, heavy enamel removal
- Standard
106–125 μm
General crown preparation, cavity prep
- Fine (F)
53–63 μm
Margin refinement, surface finishing
- Extra Fine (EF)
20–30 μm
Final polish, pre-cementation finishing
- Shape Name
- Series
- Clinical Application
- Available Grits
- Max Speed
- Taper Flat End
- TF Series
- Crown prep, chamfer margin, shoulder
- C / Standard / F / EF
- 450,000 RPM
- Taper Round End
- TR Series
- Butt margin preparation, box form
- C / Standard / F / EF
- 450,000 RPM
- Flame Ogival
- FO Series
- Subgingival finishing, interproximal
- Standard / F / EF
- 450,000 RPM
- Ball / Round
- BR Series
- Cavity opening, fissure sealant prep
- C / Standard / F
- 450,000 RPM
- Wheel Round Edge
- WR Series
- Occlusal reduction, crown removal
- C / Standard / F
- 450,000 RPM
- Straight Flat End
- SF Series
- Shoulder margin, flat surface prep
- Standard / F / EF
- 450,000 RPM
- Needle Point
- NP Series
- Endodontic access, fine cavity work
- Standard / F
- 450,000 RPM
- Torpedo / Football
- TP Series
- Occlusal surface prep, composite adjustment
- Standard / F / EF
- 450,000 RPM
- Cone Round End
- CR Series
- Veneer prep, facial reduction
- C / Standard / F / EF
- 450,000 RPM
- Pear / Inverted Cone
- PC Series
- Undercut prep, pulp cap, cavity form
- Standard / F
- 450,000 RPM
- Bur Type
- Shank
- Clinical Application
- Cutting Pattern
- Max Speed
- Straight Fissure Plain
- FG
- Crown sectioning, deep box preparation
- Straight flutes
- 450,000 RPM
- Straight Fissure Cross-Cut
- FG
- Caries removal, rapid dentin cutting
- Cross-cut flutes
- 450,000 RPM
- Tapered Fissure Plain
- FG / RA
- Axial wall preparation, crown prep
- Straight flutes
- 450,000 RPM
- Tapered Fissure Cross-Cut
- FG
- Fast crown cutting, margin definition
- Cross-cut flutes
- 450,000 RPM
- Round Bur
- RA / HP
- Caries excavation, undercut removal
- Spherical
- 450,000 RPM
- Inverted Cone
- FG / RA
- Undercut preparation, amalgam retention
- Inverted cone
- 450,000 RPM
- Finishing Bur (12-blade)
- FG
- Composite/resin contouring, margin finish
- Multi-blade
- 450,000 RPM
- Pear-Shaped
- FG / RA
- Cavity preparation, Class I & II cavities
- Cross-cut flutes
- 450,000 RPM
- Cylinder Plain (HP)
- HP
- Lab work, model trimming, acrylic
- Straight flutes
- 450,000 RPM
- Flame Carbide
- FG
- Interproximal & subgingival shaping
- Cross-cut flutes
- 450,000 RPM
- Kit / Series
- Material Compatibility
- Shank
- Shapes Included
- Steps
- KITRA Silicon Polishing Kit
- Composite Resin, Alloy
- FG / RA / HP
- Disk, Cup, Flame, Bullet, Wheel
- 3-step ki
- SDTRA Porcelain/Resin Kit
- Porcelain, Composite
- FG / RA
- Wheel, Disk, Flame, Point
- 2-step kit
- Selenium Ion Kit
- Full Ceramic, Porcelain
- FG
- Olive, Cup, Disk
- 3-step kit
- Zirconia Polishing Kit
- Zirconia (e.max, BruxZir)
- FG / HP
- Wheel, Bullet, Flame, Disk, Cup
- 4-step kit
- Full Ceramic Kit
- IPS e.max, Feldspathic porcelain
- FG
- Olive, Cylinder, Flame, Point
- 3-step kit
- Stone Grinding Heads (FG)
- Metals, Hard resins
- FG
- Cylinder, Wheel, Cone, Ball, Taper
- Single
- Stone Grinding Heads (RA)
- Metals, Hard resins
- RA
- Cylinder, Wheel, Cone, Ball
- Single
- Stone Grinding Heads (HP)
- Metals, Acrylic, Lab use
- HP
- Cylinder, Wheel, Cone, Ball, Taper
- Single
- Polishing Cups & Brushes
- Enamel, Composite surface
- RA
- Cup, Brush, Wheel
- Single
- Micro-Applicator Tips
- All materials (adhesive)
- —
- Fine, Regular, Jumbo
- Disposable
- Product
- Type
- Sizes
- Taper
- Application
- ProTaper S1
- NiTi Rotary
- 19mm / 21mm / 25mm
- Variable
- Early coronal shaping, glide path
- ProTaper S2
- NiTi Rotary
- 19mm / 21mm / 25mm
- Variable
- Middle third shaping
- ProTaper SX
- NiTi Rotary
- 19mm
- Variable
- Re-treatment, coronal reshaping
- ProTaper F1
- NiTi Rotary
- 21mm / 25mm / 31mm
- .07
- Apical shaping, narrow canals
- ProTaper F2
- NiTi Rotary
- 21mm / 25mm / 31mm
- .08
- Standard apical finishing
- ProTaper F3
- NiTi Rotary
- 21mm / 25mm / 31mm
- .09
- Wider canals, final shaping
- Barbed Broach
- Carbon Steel
- #00 / #0 / #1 / #2 / #3
- —
- Vital pulp extirpation
- Barbed Broach Fine
- Carbon Steel
- XXF / XF / F / M / C
- —
- Fine canal pulp removal
- Barbed Broach (Color-coded)
- Carbon Steel
- #1 / #2 / #3 (25mm)
- —
- Standard endodontic use
Why Choose Us
Why Global Distributors Choose Swordental
Direct manufacturer advantages that translate into competitive pricing, consistent quality and reliable supply for your business.
Factory Direct Pricing
No distributors, no markups. Source instruments directly from our Guangzhou factory at 30–50% below European brand pricing.
Full Product Range
Diamond burs, carbide burs, polishing heads and endodontic files — one manufacturer, complete catalog coverage, simplified procurement.
OEM & Private Label
Custom packaging, branded boxes, color-coded rings and your own product codes. NDA available. We supply many established brands globally.
Global Logistics
Shipped from Guangzhou to 50+ countries. Air freight 5–7 days, sea freight available for bulk orders. 4–6 week production lead time.
Factory Direct
No Middlemen — Straight from the Source
Swordental manufactures every instrument in our fully equipped Guangzhou facility. Direct sourcing means you benefit from transparent pricing, flexible order quantities and direct communication with our engineering team. No agent fees, no import markups
- MOQ as low as 100 pieces per model
- Sample orders available before bulk purchase
- Transparent pricing with no hidden fees
- Direct technical support via WhatsApp/WeChat
Quality Assurance
Consistent Quality, Batch After Batch
Every Swordental instrument is manufactured under strict quality protocols. Our diamond burs undergo grit-size verification, shank roundness testing and bond strength checking before release. CE marking and ISO 13485 certification give our export partners regulatory confidence.
- CE certified under EU Medical Device Regulation
- ISO 13485 quality management system
- 100% shank diameter tolerance ±0.002mm
- Batch traceability documentation available
Why Choose Us
Why Global Distributors Choose Swordental
Direct manufacturer advantages that translate into competitive pricing, consistent quality and reliable supply for your business.
CNC Machining
CNC Machining →
CNC Machining →
CNC Machining →
CNC Machining →
Raw Material →
Client Reviews
What Our Distributors Say
Trusted by dental distributors and product companies across four continents.
We’ve sourced diamond burs from Swordental for over four years. The consistency across production batches is genuinely impressive — our clinic clients haven’t noticed any quality variation. The factory-direct pricing allows us to stay very competitive in the US market.
Mark T.
ental Distributor · Texas, USA
The OEM private label service is seamless. Our branded packaging looks premium, the CE documentation is complete, and the lead times have always been met. Swordental is our primary source for rotary instruments — we’ve switched our entire diamond bur catalog over.
Klaus M.
Medical Device Importer · Munich, Germany
Responsive WhatsApp support, fast shipping from Guangzhou, and products that meet our clinic chain’s quality standards. We tested sample orders before committing — the quality matched what was shown in the catalog. We reorder every quarter now.
Sarah L.
Procurement Manager · Singapore
Client Reviews
What Our Distributors Say
Trusted by dental distributors and product companies across four continents.
Your information and privacy will be protected.
Talk to Our Team
We typically respond within 24 hours on business days. WhatsApp responses are fastest.
- Egmail：swordental@outlook.com
- WhatsAPP:+86 158 2028 7052
- Wechat:+86 158 2028 7052
- Telephone：+86 158 2028 7052
- Address：Room 202,No.352 of shilian Road,PanYu DIST ,GuangZhou City,Guangdong province,China
⚡ Average Response Time
Email: within 24 hours · WhatsApp: within 2 hours during business hours (GMT+8, Mon–Sat 9am–6pm). Sample orders typically dispatched within 3–5 business days.
